Sistema do estacionamento do reconhecimento da matrícula
Created with Pixso. High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254

Nome da marca: Realpark
Número do modelo: RPH254-SERVO
MOQ: 1 CONJUNTO
preço: Welcome to contact us!
Tempo de entrega: 1-2 semanas
Condições de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Informações pormenorizadas
Lugar de origem:
China
Certificação:
CE and ISO9001
Part Name:
Vehicle Barrier System
Part Number:
RPH-254-SERVO
Motor Type:
DC 24V Servo Motor
Supply Voltage:
AC220V±10%, 50Hz/60Hz
Straight Arm Speed:
0~0.9s for 0~3Meters
Barrier Usage:
Outdoor or Indoor
Usage:
Parking lots
Arm Types:
Boom, Folding arm, Fencing arm
Package Size::
98*38*41cm
Carton Package weight:
36kgs
Detalhes da embalagem:
98*38*41cm/36kg/conjunto/Cartão, 103*43*44cm/43kg/conjunto/Lança
Habilidade da fonte:
1000 conjuntos/mês
Descrição do produto

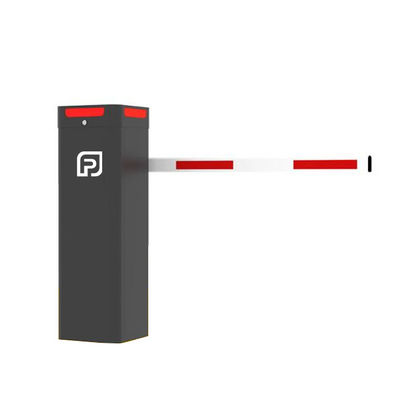

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254


The RPH-254 is a high-speed, industrial-grade automatic barrier gate powered by a 24V DC servo motor, designed for smooth and efficient parking access control. It features anti-crush protection, LED indicators, and customizable communication options (RS232/485).

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 0



DC Servo Barrier Gate Key Features:
Ultra-fast operation with precision DC servo motor (200W)
Advanced anti-crush system (infrared + pressure wave + loop detection)
Industrial-grade aluminum alloy construction
Smart LED traffic indicators (red/green status lights)
1-5m adjustable elliptical barrier arm
Low-voltage 24V DC operation for energy efficiency
Supports RS232/485 communication for system integration
IP54 weatherproof rating for outdoor durability

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 1



Automatic Boom Barrier Technical Specifications:
Power Supply: AC 220V ±10%, 50Hz (converts to 24V DC)
Motor Type: High-torque DC servo
Peak Current: 30A
Protection: Over-current/voltage/short-circuit
Control Interface: 4-digit LED + 4-button keypad
Operating Temperature: -30°C to +70°C



High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 2


Parking Barrier System Why Choose RPH254?
✅Safety First - Triple-layer anti-crush protection prevents accidents
✅Lightning Fast - 3-5 second open/close cycle time
✅Built to Last - Military-grade materials withstand harsh conditions
✅Smart Control - Remote operation + system integration capabilities
✅Energy Efficient - 30% lower power consumption than AC motors



High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 3


High-Speed Barrier Gate Applications:
✔ Smart parking systems
✔ Toll stations
✔ Gated communities
✔ Industrial facilities
✔ Airport parking



High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 4


Anti-Crush Parking Gate Customization Options:
Arm length customization (1-6m available)
Branding/OEM services
Special color requests
Custom communication protocols




Smart Parking Solution Package Includes:
Barrier gate main unit
Control box
Installation manual
Basic remote control (optional)

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 5



                                                                        Industrial Barrier Gate FAQ


1. What makes the RPH254 different from standard barrier gates?
Our RPH254 features a high-performance DC servo motor that provides faster operation (3-5 second cycles) and smoother movement compared to traditional AC motor gates. The advanced anti-crush system with triple protection (infrared + pressure wave + loop detection) offers superior safety.

2. What power supply is required for installation?
The gate operates on standard AC 220V ±10%, 50Hz power, which is converted to 24V DC for the motor. This low-voltage operation makes it safer and more energy-efficient.

3. How long is the standard barrier arm? Can it be customized?
The standard elliptical arm comes in 1-5 meter lengths. We can customize lengths up to 6 meters for special applications through our OEM service.

4. What safety features does it include?
The RPH254 includes: Infrared beam detection,Pressure wave sensors,Loop detectors,Automatic emergency stop,Over-current/voltage protection

5. Can it operate in extreme weather conditions?
Yes, with an IP54 rating, aluminum alloy construction, and high-temperature baking paint (180-250°C), it withstands temperatures from -30°C to +70°C and resists corrosion.

6. What communication protocols are supported?
The gate supports: Standard RS232 interface,Optional RS485 communication,Dry contact signals,Wireless remote control

7. How does the LED indicator system work?
The smart LED lights show:

Solid red: Gate closed and secured
Solid green: Gate fully open
Flashing: Movement in progress

8. What maintenance does it require?
Minimal maintenance needed:Annual lubrication of moving parts,Periodic sensor alignment check,Visual inspection of wiring every 6 months

9. Can it integrate with existing parking systems?
Yes, through:Our provided SDK/API,Standard RS232/485 protocols,Dry contact interfaces,Custom integration services



For more technical details or customization inquiries, please contact our support team at realpark@realparkanpr.com. Our engineers are ready to help you design the perfect solution for your parking management needs.
